CNC & Design Services

Our Equipment & Capacities



  • Max. workpiece diameter: 18.1 in.
  • Max. workpiece length: 49.4 in.
  • Max. bar diameter: 3.5 in.
  • Max. X-axis travel: 10.2 in.
  • Max. Y-axis travel: 3.9 in.
  • Max. Z-axis travel: 53 in.
  • Turret equipped with BMT (Built-in Motor Turret)

  • Max. X-axis travel: 43.3 in.
  • Max. Y-axis travel: 22 in.
  • Max. Z-axis travel: 20.1 in.
  • Max. workpiece height: 24.8 in.
  • Max. workpiece weight: \2204.6 lbs.
  • Max. workpiece length: 55.1 in.
  • Max. workpiece width: 22 in.

  • Max. X-axis travel: 40.75 in.
  • Max. Y-axis travel: 22 in.
  • Max. Z-axis travel: 20.1 in.
  • Max. workpiece height: 24.8 in.
  • Max. workpiece weight: 2204.6 lbs.
  • Max. workpiece length: 47.25 in.
  • Max. workpiece width: 22 in

  • Max. X-axis travel: 40 in.
  • Max. Y-axis travel: 20 in.
  • Max. Z-axis travel: 25 in.
  • Max. workpiece height: 24.8 in.
  • Max. workpiece weight: 3500 lbs.
  • Max. workpiece length: 48 in.
  • Max. workpiece width: 18 in.

  • Chuck Size: 10"
  • Bar Capacity: 3"
  • Turning Diameter: 10.2"
  • Spindle Speed: 3,500 RPM
  • Distance Between Centers: 24.6"

  • Chuck Size: 6"
  • Bar Capacity: 2.6"
  • Turning Diameter: 13.8"
  • Spindle Speed: 4,500 RPM

  • Chuck Size: 10"
  • Bar Capacity: 2.625"
  • Turning Diameter: 14.96"
  • Spindle Speed: 3,500 RPM

Our CNC tools include:

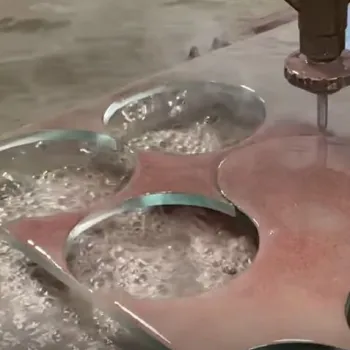

Water Jet

Our water jet CNC machine is a cutting-edge technology that utilizes a high-pressure stream of water mixed with abrasive materials to precisely cut through a wide range of materials.

Press Brake

Our CNC press brake offers precise and efficient bending capabilities for a wide range of sheet metal and plate materials.

With advanced computer-controlled technology, we can achieve accurate and consistent bending angles, ensuring high-quality results.

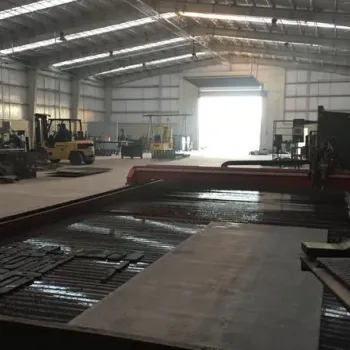

Plasma Cutting

Engineered for accuracy and speed, our cutting-edge equipment seamlessly translates your designs into reality with immaculate cuts on a variety of metals.

From intricate patterns to large-scale projects, our CNC plasma cutter offers versatility and reliability, empowering you to bring your visions to life with unparalleled precision.

Designing & Prototyping Custom Parts

Precision designing and prototyping using CNC machines is a highly advanced and efficient process. the CNC machine can create prototypes with incredible precision and detail. With their ability to produce prototypes quickly and accurately,
